Manitou TJ 85 – Power, Reach, and Reliability at New Heights

Features

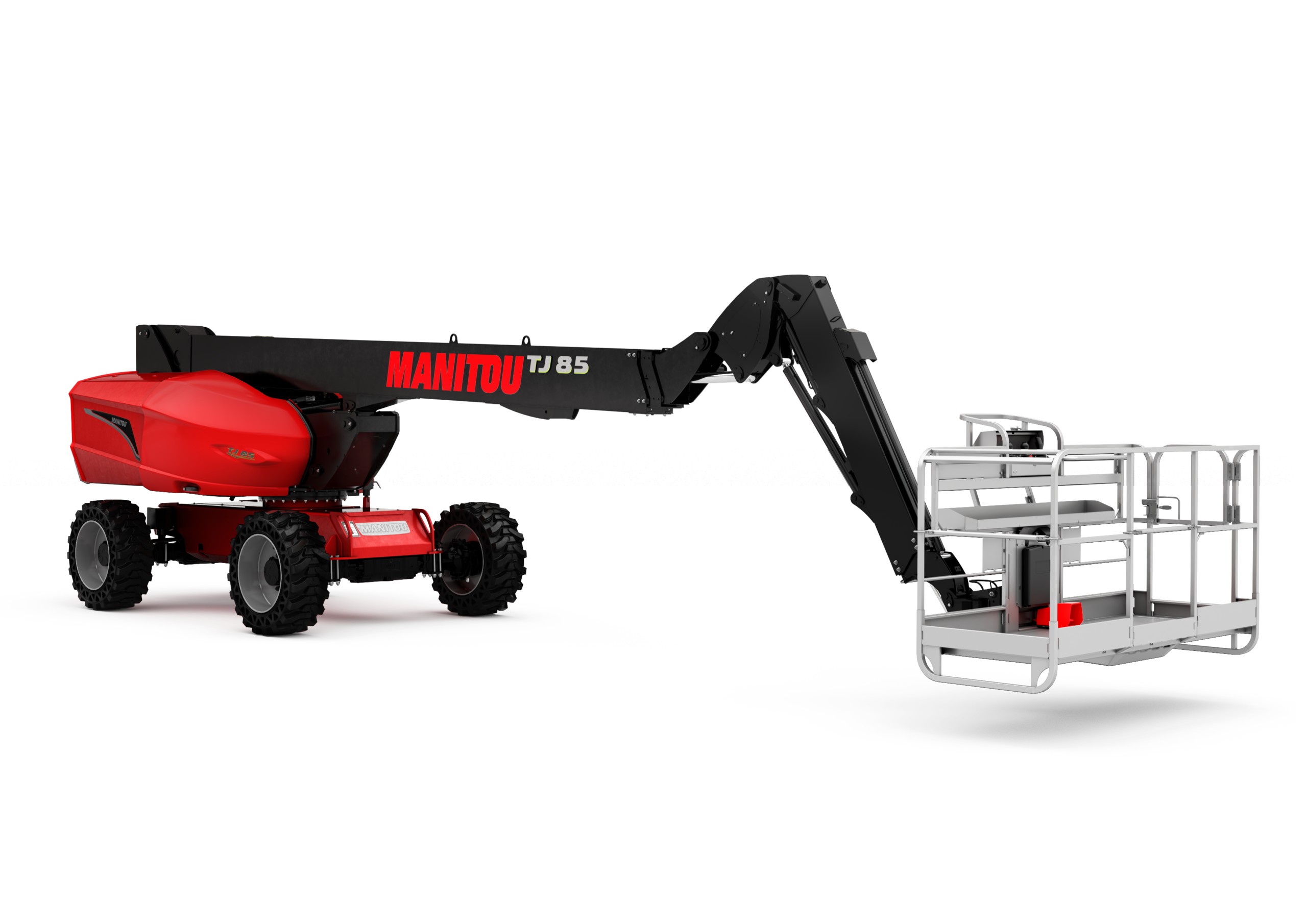

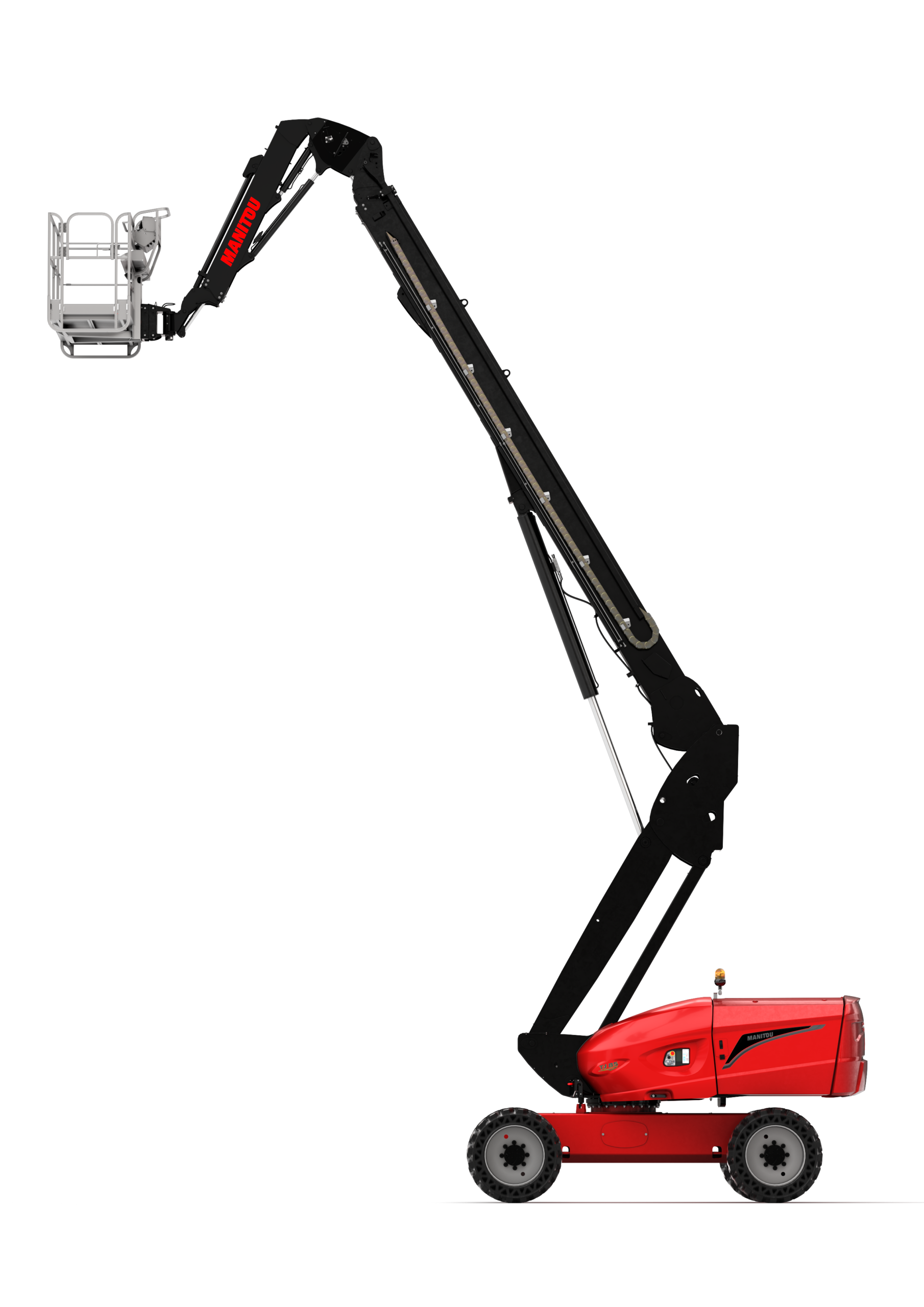

Manitou TJ 85 Telescopic Boom Lift

The Manitou TJ 85 telescopic boom lift delivers the reach, stability, and performance needed for demanding construction, industrial, and maintenance applications. With a 91-foot working height and 70-foot maximum outreach, the TJ 85 helps operators reach elevated and difficult-to-access areas both indoors and outdoors.

Designed for heavy-duty applications, the Manitou TJ 85 offers a platform capacity of up to 772 lbs. for three operators outdoors. A 360-degree turret rotation and 12-foot 6-inch jib provide added flexibility when positioning workers and materials at height.

Manitou TJ 85 Performance and Maneuverability

The TJ 85 is built to perform on challenging terrain. Four-wheel drive, four-wheel steering, and crab mode provide excellent maneuverability on job sites. An oscillating axle and limited-slip differential help improve stability when operating over uneven surfaces.

The lift also combines performance with efficiency. A Kubota Tier 4 engine, CAN bus diagnostics, and Stop & Go fuel-saving technology help simplify operation and reduce operating costs. These features can make the TJ 85 a practical choice for businesses focused on productivity and total cost of ownership.

Operator Comfort and Safety

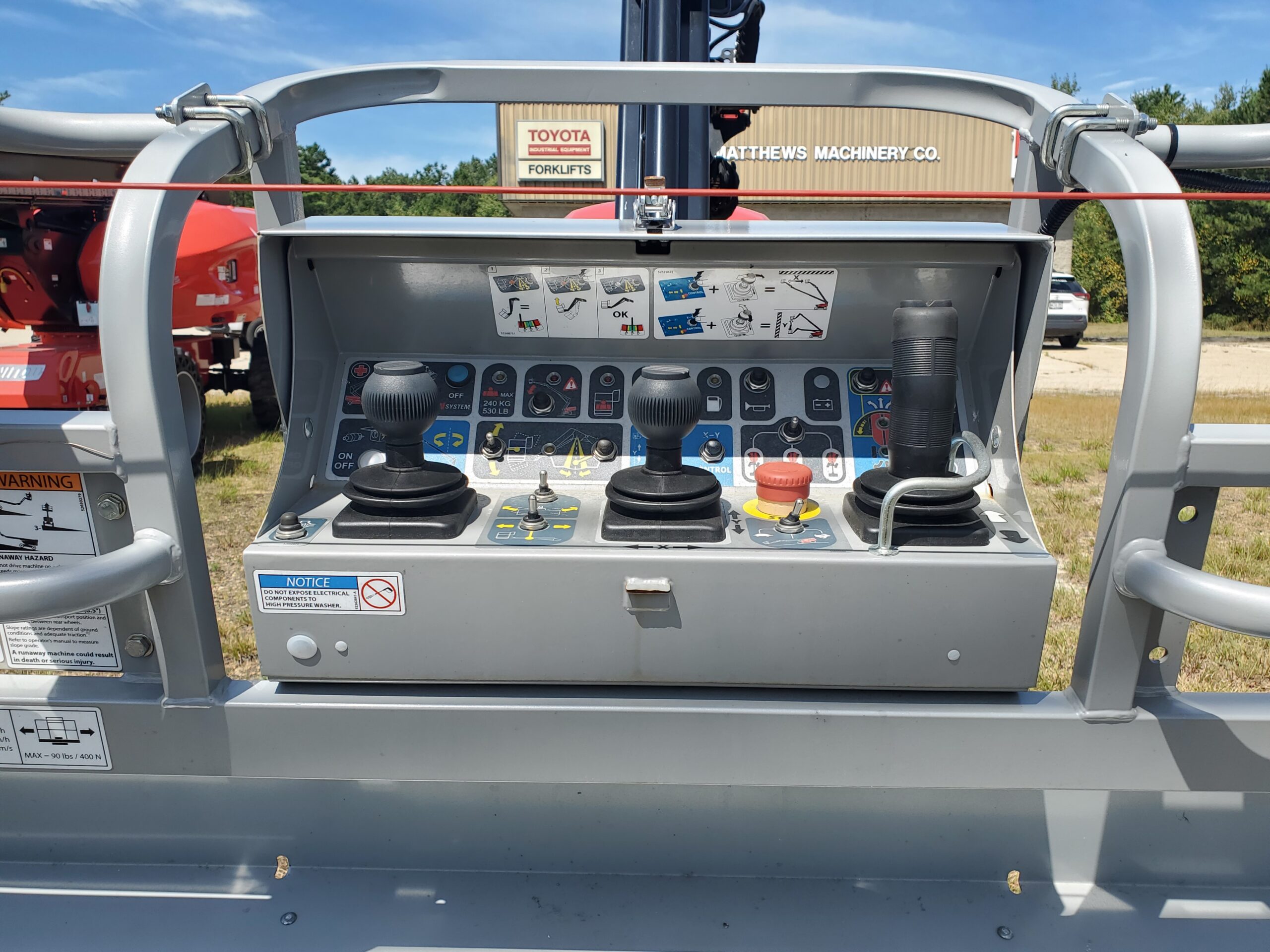

Operator comfort is an important part of the TJ 85 design. Ergonomic controls and a spacious 7-foot 7-inch platform provide room for productive work at height. The lift also includes advanced safety features such as automatic basket leveling, load sensors, and dead-man pedal protection.

Whether you're working on construction sites, industrial facilities, or maintenance projects, the Manitou TJ 85 telescopic boom lift provides the reach and versatility needed for demanding applications.

For businesses in Maine, New Hampshire, Massachusetts, and throughout New England, the TJ 85 can be a valuable addition to a professional access equipment fleet.

Looking for more information about the Manitou TJ 85? Contact W.D. Matthews Machinery Company to learn more about available equipment and specifications.

Manitou TJ 85 Specifications

• Working Height: 91 ft.
• Maximum Outreach: 70 ft.
• Platform Capacity: Up to 772 lbs.
• Turret Rotation: 360°
• Jib Length: 12 ft. 6 in.
• Drive: 4-wheel drive
• Steering: 4-wheel steering with crab mode
• Engine: Kubota Tier 4
• Platform: 7 ft. 7 in.
• Safety Features: Automatic basket leveling, load sensors, and dead-man pedal protection
