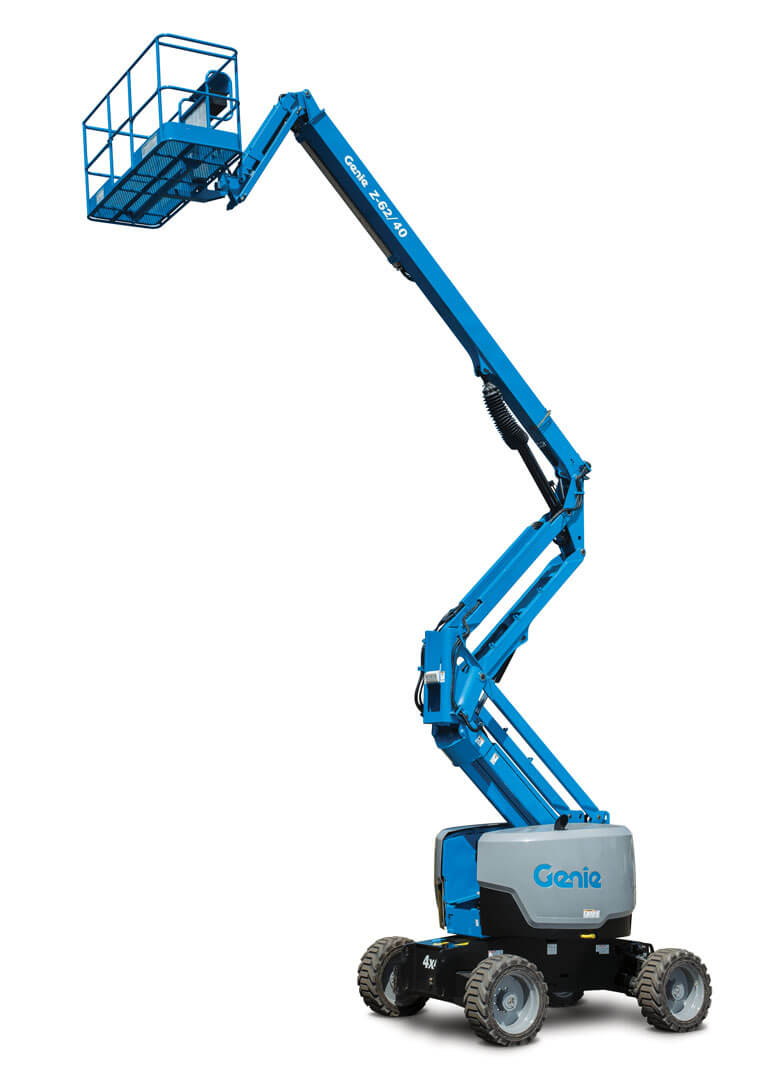

Genie Z-62/40 Articulating Boom Lift

Description



The versatile Genie® Z®-62/40 articulating boom lift with capabilities provides lifting needs with a combination of up, out and over positioning capabilities with outreach that’s second to none. This makes the Genie® Z®-62/40 a valuable asset for outdoor construction and industrial applications.

Options

Chassis Options
  • Tow package
  • 4 wheel steering
Tire Options
  • Z-62 Trax: Quadra Track System, requires 4WD
  • High flotation tires: requires 4WD; includes additional counterweight
  • Rough terrain foam-filled tires (water based)
  • Rough terrain foam-filled tires (petroleum based)
  • Rough terrain, non-marking air-filled tires
  • Rough terrain, non-marking foam-filled tires (water based)
  • Rough terrain, non-marking foam-filled tires (petroleum based)
  • Tire sealant: air-filled tires only
Engine Options
  • 60 hp Ford MSG425, gas/LPG Dual Fuel (not available on Trax)
  • 74 hp Deutz Tier 4f TD2.9L4, turbo diesel (standard with Trax)
  • Diesel air intake pre-cleaner
  • LPG tank, 33.5 lb. capacity: Ford engine only
  • LPS fire protection rating: Ford engine only and requires LP only operation
  • Cold weather kit: 5W-40 synthetic engine oil, oil pan heater, battery heater, hydraulic tank heater
  • Ford engine gauge package: oil pressure, temperature and voltage(excludes turbo)
Lift/Turntable Options
  • Specialty hydraulic oil  (50 gal - cold weather, fire resistant, or biodegradable)
  • Hostile environment kit: cylinder bellows, boom wiper seals, platform and ground control box covers
  • Deluxe hostile environment kit : hostile environment kit, center turntable shield, ring gear guard, tail pipe guard, and air pre-cleaner
Platforms
  • 6 ft. dual entry or 8 ft. tri entry platform with ½ height mesh inserts and side swing gate
  • 6 ft. dual entry platform with side swing gate
Platform Options
  • AC generator, 110V/60Hz,  or 220V/50Hz,  3000W, hydraulically driven
  • Air line to platform: ½ in. inner diameter
  • Aircraft protection kit: platform foam padding and padded disable system
  • Aircraft protection kit: with swing gate
  • Light package: 2 chassis mounted drive lights and 2 platform mounted work lights
  • Lockable platform and ground control box covers
  • Panel cradle package
  • Platform auxiliary top rail
  • Thumb rocker steering
  • Welder - Select Lincoln or Miller
  • Welder ready package
  • Traveling fall arrest anchor system: requires 6ft platform
  • Traveling fall arrest anchor system: requires 8ft platform

Specifications

Max Working Height67 ft 11 in | 20.87 m
Max Horizontal Reach40 ft 5 in | 12.42 m
Max Up and Over Clearance (riser extended)25 ft 7 in | 7.8 m
Platform Capacity500 lb | 227 kg
See manufacturers website for complete options & specs
